Right Angle DIN 1.0/2.3 to BNC cable



CRW_6186

Mini Din 1.0/2.3 are used by:
Black Magic Design on Video Assist & Hyperdeck Shuttle
AJA on Kona 3 & 4 Video Cards
Red Digital Cinema
Miranda Nvision
Switchcraft
etc.
Cable: Argosy Image 360
Manufactured exclusively for Argosy by Draka, the Image range of HD Digital Broadcast Video cables have been carefully designed to provide superior performance at high frequency digital applications as well as also being suitable for the lower frequencies used in analogue applications.

The small diameter of the Image 360 cable has an added benefit over traditional analogue video cables, by affording weight and spaces savings in high-density installations.

This cable is primarily used for in-rack wiring and OB trucks.

Connectors: Coax BC 55C3G
With the higher requirements of Serial Digital Video, HDTV, 3G etc., we now offer “true” 75 Ohm BNC connectors, 3G-SDI compatible BNC connectors. To achieve a nominal impedence of 75 Ohm, these connectors are designed with a reduced dielectric around the pin.

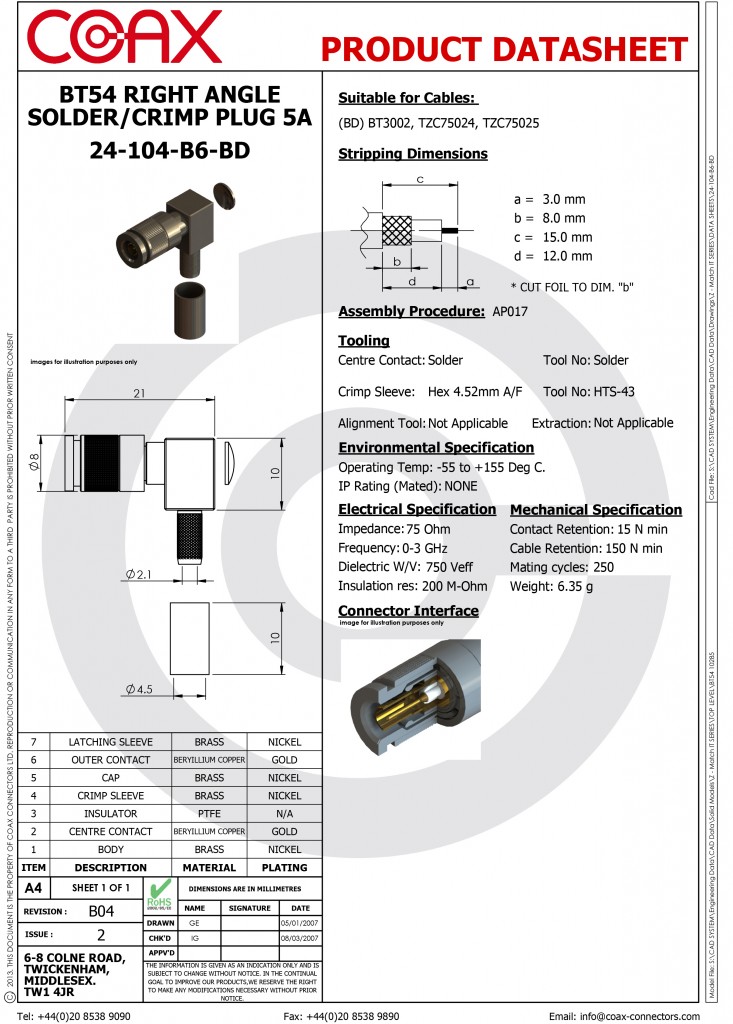

Connector Din 1.0/2.3 : Coax 24-104-B6-FA
Complete with heat shrink cable strain relief.
CRW_6188
52-104-B6-FA-REV-A01-2
1023 RA ON 1855ENH
These Din1.0/2.3 plugs make a locked connection when engaged, with Black Magic Design, Hyperdeck Shuttle or Video Assist(early models-non HDR), which has recessed sockets, this makes the unlocking ring difficult to grip with fingers.
For ease, a pair of thin nosed pliers may be used for disconnecting (connecting is straightforward).
 CRW_6243CRW_6246

Cable features & spec from web:

These coaxial cables are suitable for the transmission of serial digital video signals and are equivalent to Belden 1855 and Draka Image 360. They offer an advantage over traditional types of cable used for this application, as their smaller diameter allows a larger packing density in signal distribution systems, e.g. in jackfield and distribution amplifier wiring, where back planes are very densely populated. The jacket material used is LS0H copolymer for compliance with today’s increasingly stringent regulations for areas of public concourse.
Technical Specification
Conductor 0.605mm bare copper wire
Dielectric Gas-injected foam high density polyethylene
Inner screen Aluminium/polyester tape
Outer screen TCW 90% coverage
Impedance 75 Ohm
Capacitance nominal 54.0 pF per metre
Dielectric constant: 1.45 nom
Velocity of propagation: 81 – 84%
Resistance:
Inner conductor 61.0 Ohms/Km
Outer conductor (screen) 17.0 Ohms/Km
Jacket material ‘LOW SMOKE’ halogen free copolymer
Overall diameter 4.50mm
Max reel length 500 metres
Weight 3.0Kg per 100m
Attenuation @ 1.0 MHz 1.10 dB/100m
71.5 MHz 9.10 dB/100m
88.5 MHz 9.90 dB/100m
135.0 MHz 12.20 dB/100m
180.0 MHz 13.90 dB/100m
270.0 MHz 16.90 dB/100m
750.0 MHz 29.40 dB/100m
1500.0 MHz 42.20 dB/100m
2250.0 MHz 52.10 dB/100m
3000.0 MHz 60.30 dB/100m

User Product Focus:

Black Magic Design – Video Assist

Screen Shot 2020-10-29 at 15.43.45

High resolution, large monitor for perfect focus and framing!

Product web page:

https://www.blackmagicdesign.com/uk/products/blackmagicvideoassist

Screen Shot 2015-11-09 at 22.00.02 Screen Shot 2a
Screen Shot 2015-11-09 at 21.55.43

Connections

SDI Video Input

1 x SD/HD/3G/6G-SDI via DIN 1.0/2.3 connector

SDI Video Output

1 x SD/HD/3G-SDI via DIN 1.0/2.3 connector

AJA – Kona 4G

Screen Shot 2015-11-09 at 22.17.35 Screen Shot 2015-11-09 at 22.16.49

KONA 4 is a powerful 8-lane PCIe 2.0 video and audio desktop I/O card with unparalleled features for handling everything from SD to HD, 2K and 4K with full 10-bit 4:2:2 and 4:4:4 sampling for fantastic image clarity. KONA 4 has the power for the work you do today and into the future.
